Discharging Harrow Vacuum Drying Equipment Vacuum Drying Chamber

Name: Discharging Harrow Vacuum Drying Equipment Vacuum Drying Chamber
Brand: YIGAN
Price: 1 USD

China Discharging Harrow Vacuum Drying Equipment Vacuum Drying Chamber factory

Brand Name : YIGAN

Model Number : ZB

Certification : CE,GMP

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Packaging Details : Packed in film firstly, and then reinforced with wooden case for outer packing

Delivery Time : 20 working days after received your payment

product name : vacuum dryer/vacuum drying equipment

feature : stirring rod

inner structure : harrow type

drying type : dynamic

application : paste

sealing : mechanical seal

Contact Now

ZB Series pneumatic discharging Harrow Type Vacuum Dryer with stirring rod

Features

1. Being adapted the big area heating way, its heat conducting area large and its heat efficiency is high.

2. Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder, so the uniformity to be heated of raw material is raised greatly.

Application

The following raw materials from pharmaceutical industry, foodstuff industry, chemical industry and so on can be dried.

Raw materials that are easy to oxidize or explode and have strong irritative or toxic.

Raw materials that need to recover solvent.

Working Principle

ZB Series pneumatic discharging Harrow Type Vacuum Dryer with stirring rod is an innovation horizontal batch-type vacuum dryer, The moisture of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be pumped out by vacuum pump.

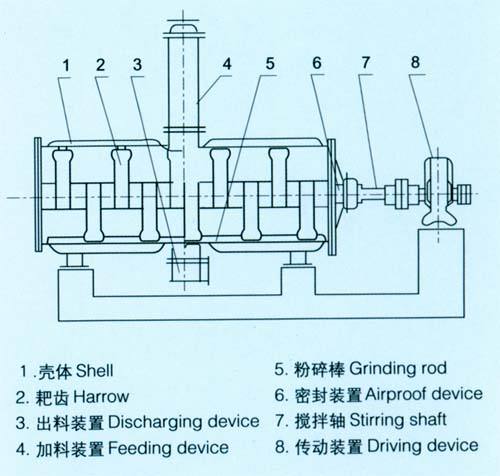

Structure Drawing

Discharging Harrow Vacuum Drying Equipment Vacuum Drying Chamber

Technical Parameters

Item	ZB-500	ZB-750	ZB-1000	ZB-1500	ZB-2000	ZB-3000	ZB-5000
Working volume( L)	300	450	600	900	1200	1800	3000
inner cylinder size	ф600х1500	ф800х1500	ф800х2000	ф1000х2000	ф1000х2600	ф1200х2600	ф1400х3400
Power	4	5.5	5.5	7.5	11	18.5	22
Stirring speed	5~25		5~12		5
pressure of jacket	≤0.3
Inner Pressure	-0.09~-0.096

Note: The evaporated amount of water its related to the characteristics of raw materials and the drying temperature .Data above only for reference. we have the right to change but not notice, pardon!
